Description

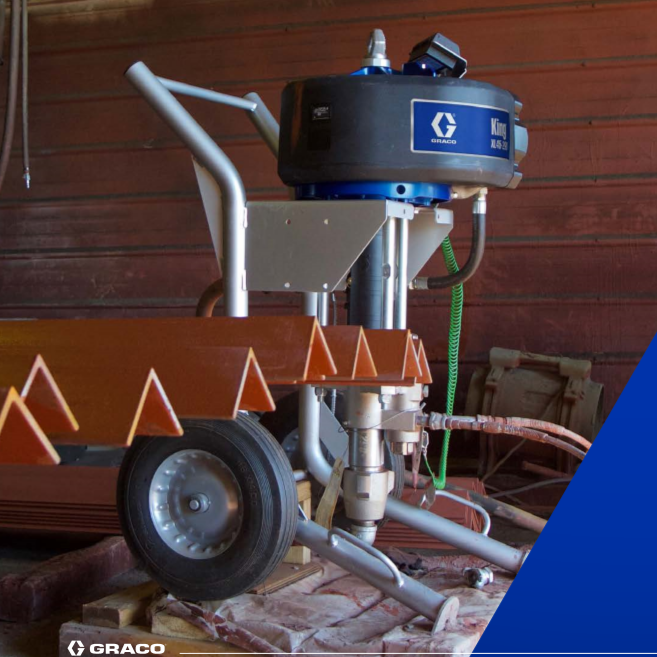

The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before.
The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Technical Specifications
| Motor Package | XL 3400 | XL 6500 | XL 10000 |
| Output per Cycle | 180-220cc | 145-290cc | 250-430cc |
|---|---|---|---|
| Maximum Working Pressure | 3150-3800 psi (217-262 bar, 21.7-26.2 MPa) |
4550-7250 psi (313-500 bar, 31.3-50.0 MPa) |
4800-7250 psi (88-100 bar, .07-.60 MPa) |
| Maximum Air Input Pressure | 100 psi (7.0 bar, .07 MPa) |
80-100 psi (5.5-7.0 bar, .07-.55 MPa) |
88-100 psi (6.0-7.0 bar, .07-.60 MPa) |
| Output at 60 Cycles/min | 2.9-3.4 gpm 11.0-12.9 lpm |
2.3-4.6 gpm 8.7-17.0 lpm |
4.0-6.7 gpm 15.1-25.4 lpm |
